GP-Probe Case for DIN L1
Protective IP66 case for GP-Probe DIN L1. Comes with a micro-PC for offline use or a 4G router for GP-Cloud connection.
Choose from our trusted distributors to enjoy personalized service, expert advice, and compliance with regional standards for a seamless buying experience.
Key Features

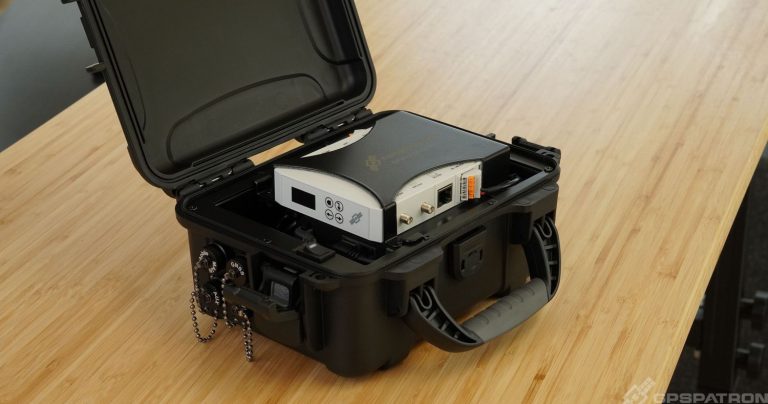

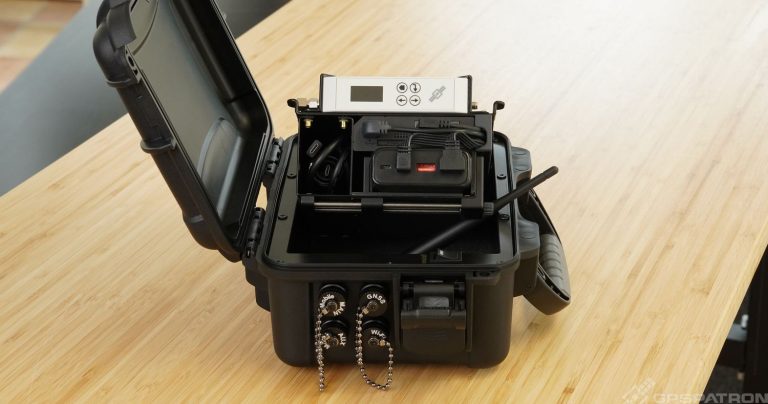

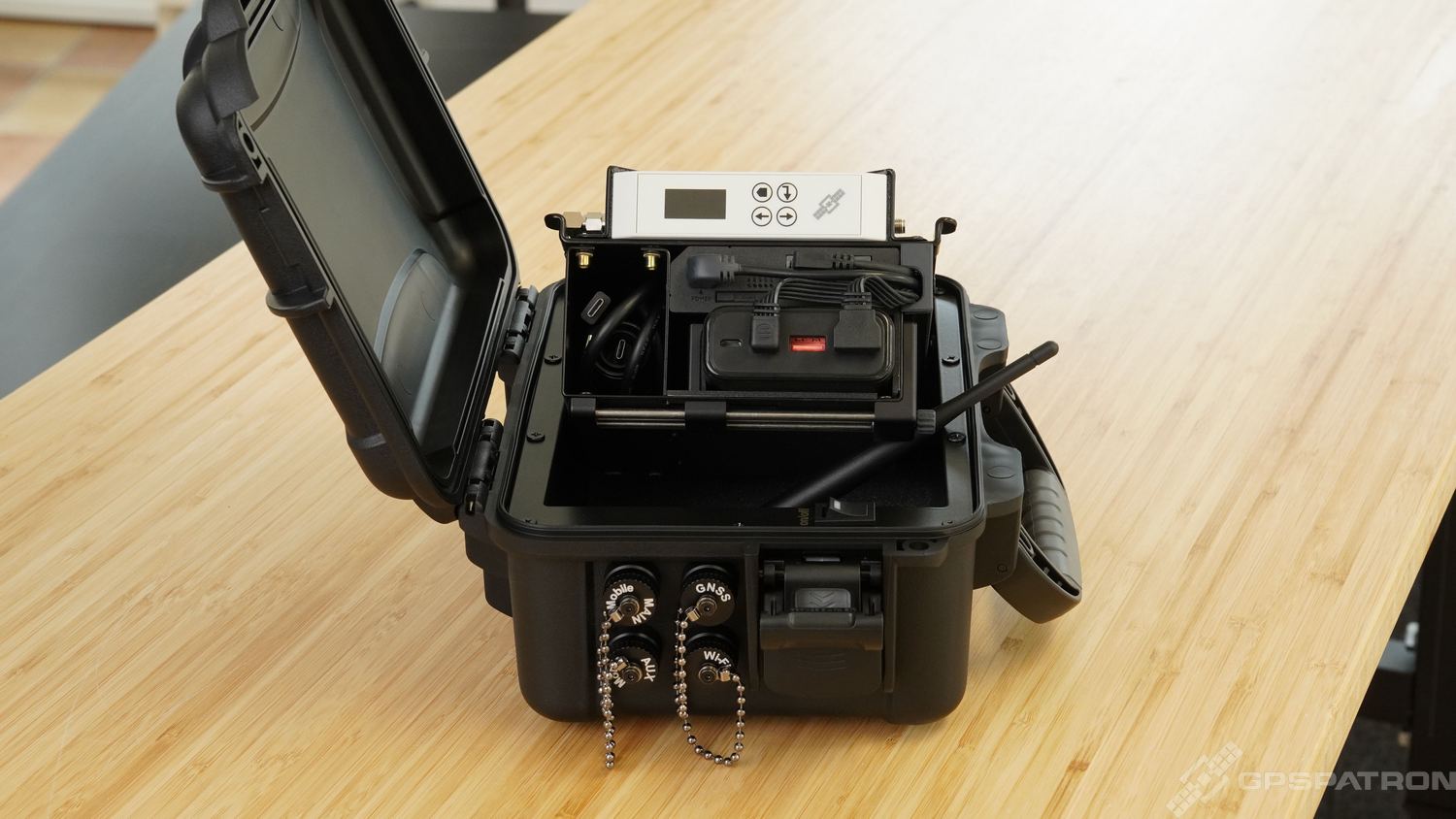

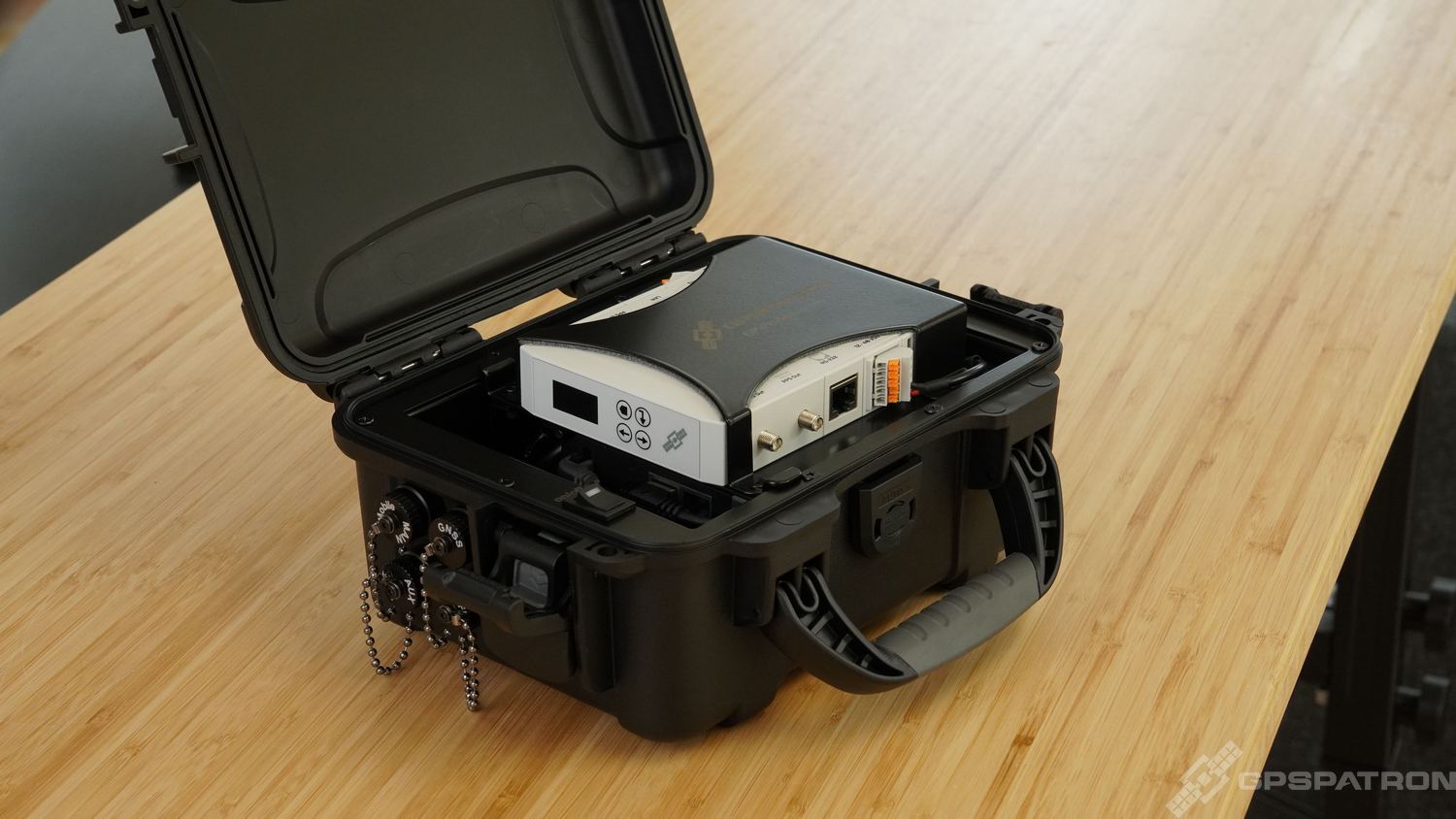

Rugged, IP66-rated enclosure designed to protect the GP-Probe DIN L1 GNSS interference detector in harsh environments. It features a removable 20,000 mAh power bank and is available in two configurations: with a built-in micro-PC for standalone offline data logging, or with a Teltonika 4G router for continuous real-time monitoring via GP-Cloud. The quick-access design ensures easy maintenance, battery replacement, and flexible deployment in field operations.

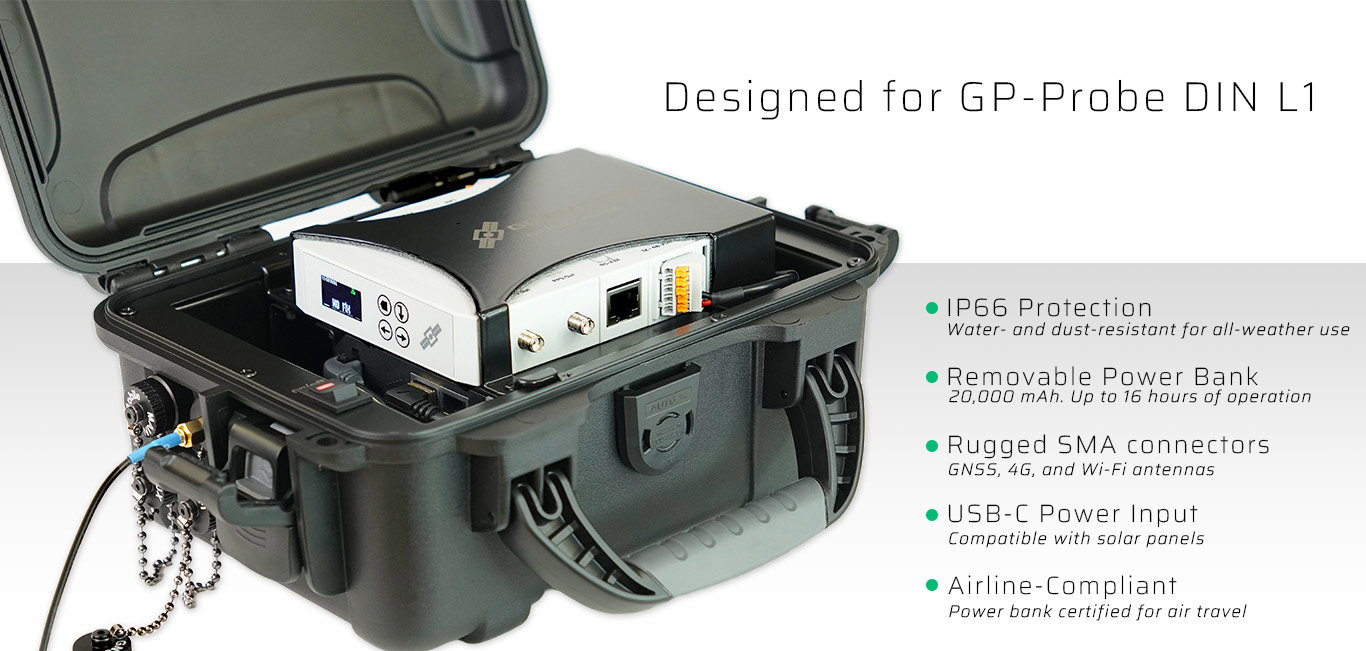

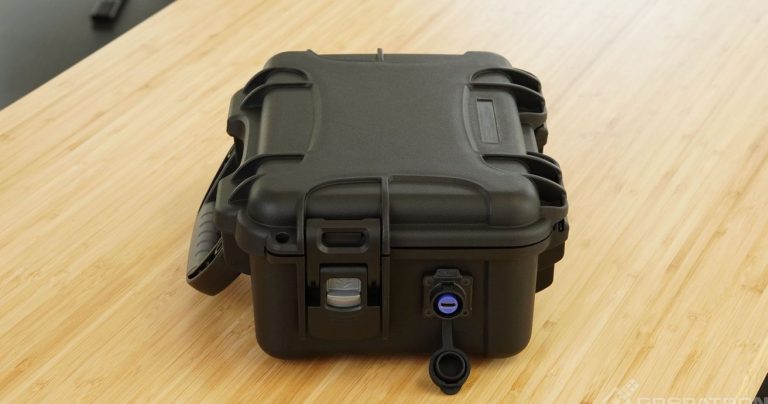

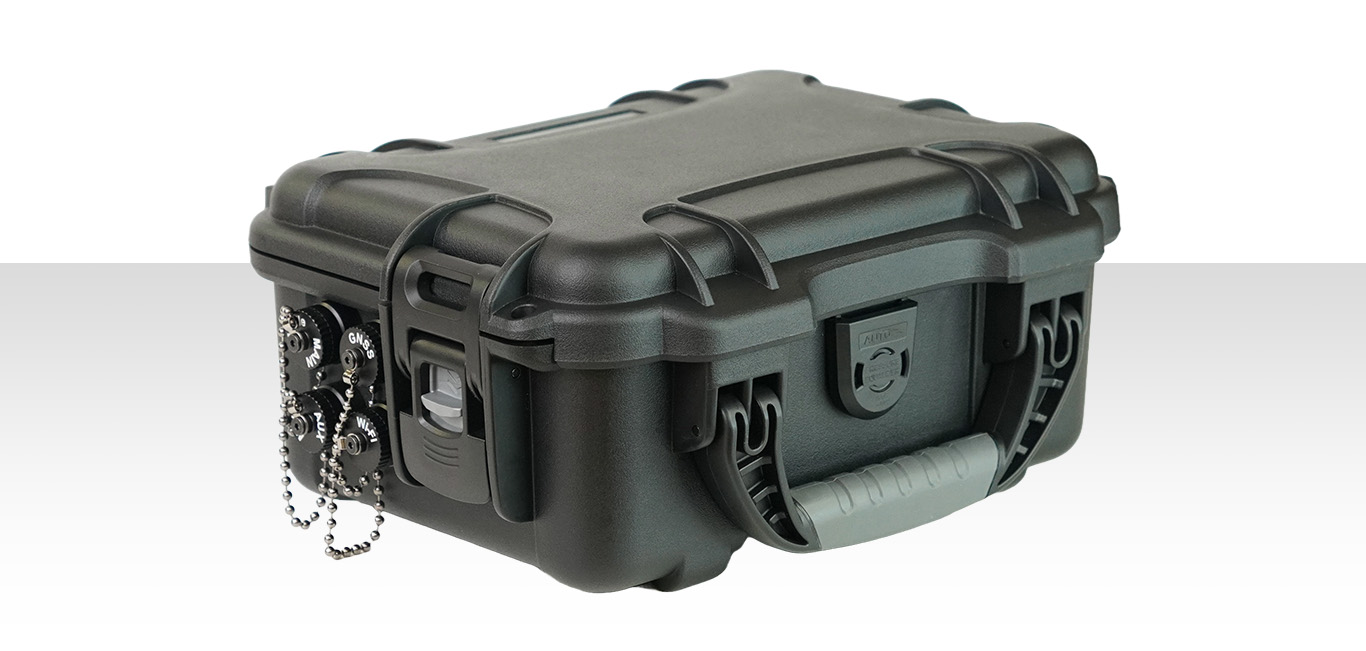

Rugged IP66-Rated Protection

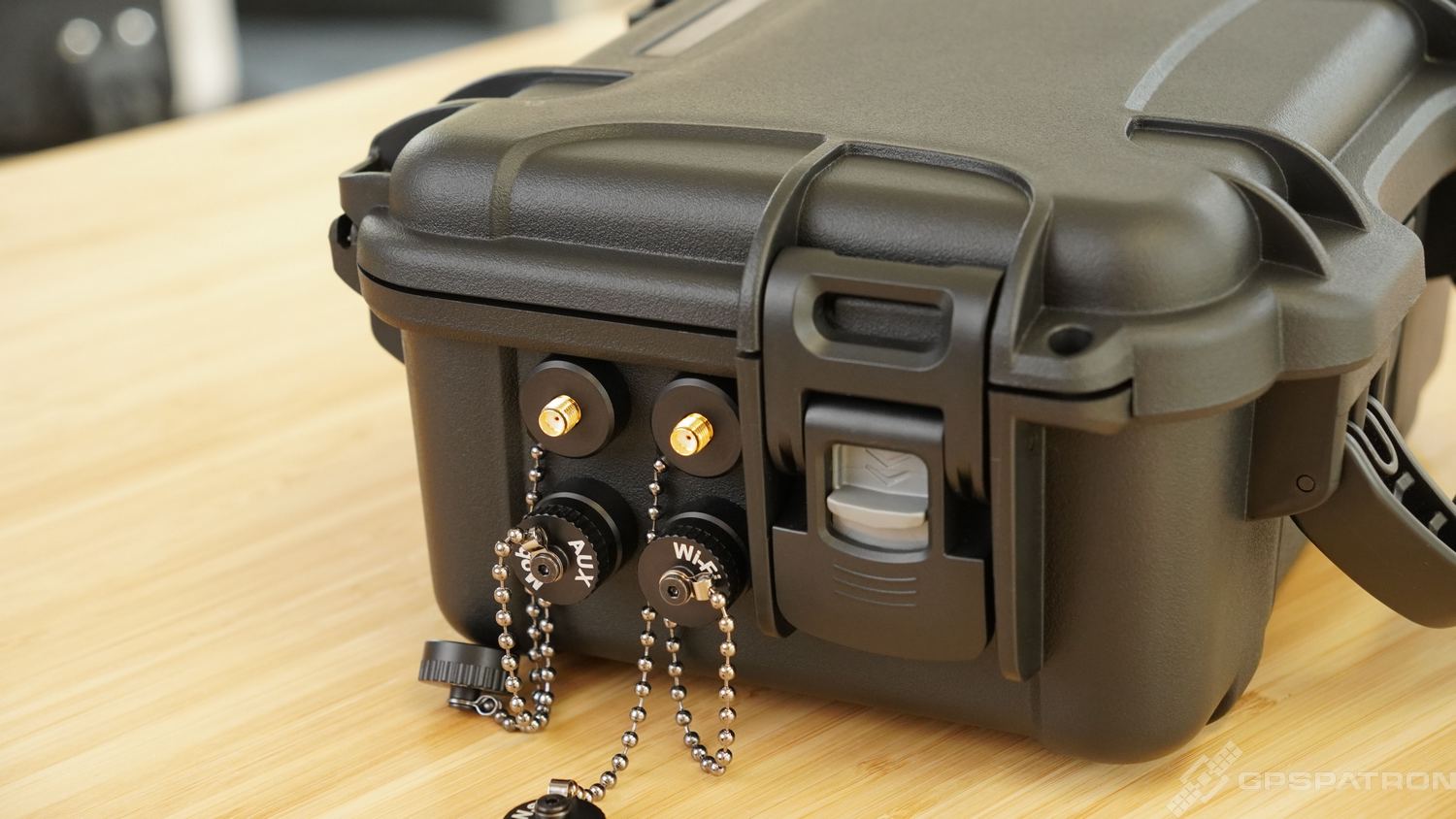

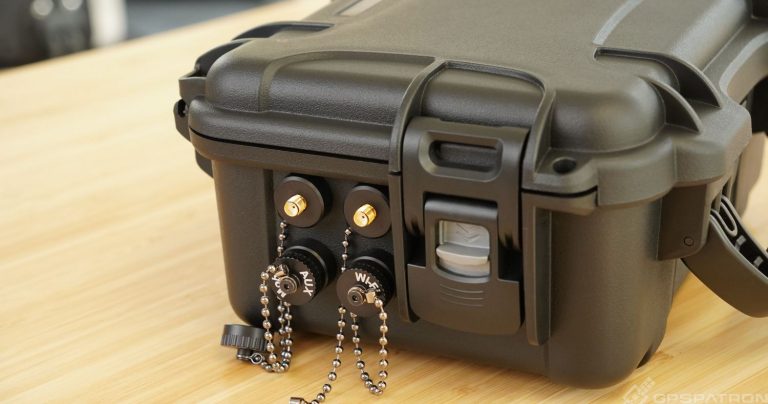

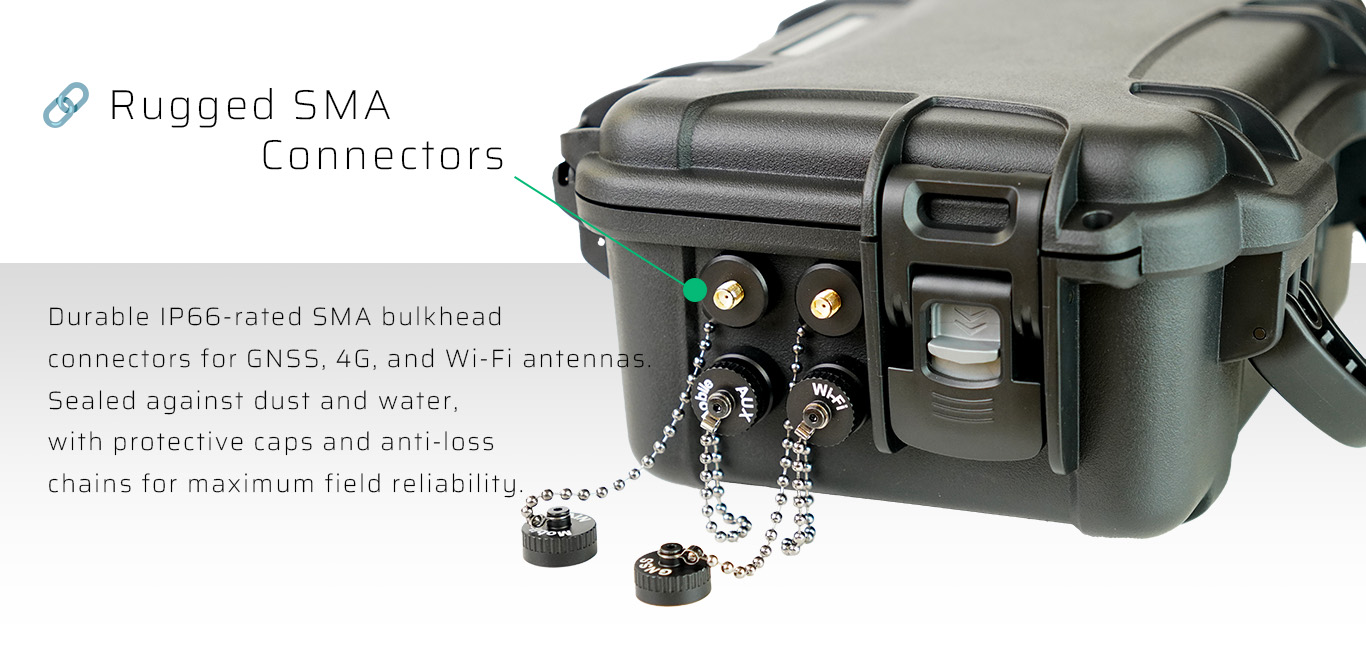

Full resistance against dust, water, mechanical shocks, and harsh environmental conditions. Equipped with ruggedized external SMA connectors for reliable antenna connections in the field.
Integrated 4G Router
Optional configuration with a built-in Teltonika 4G router enables continuous real-time data transmission to GP-Cloud, ensuring remote GNSS interference monitoring without the need for local network infrastructure.

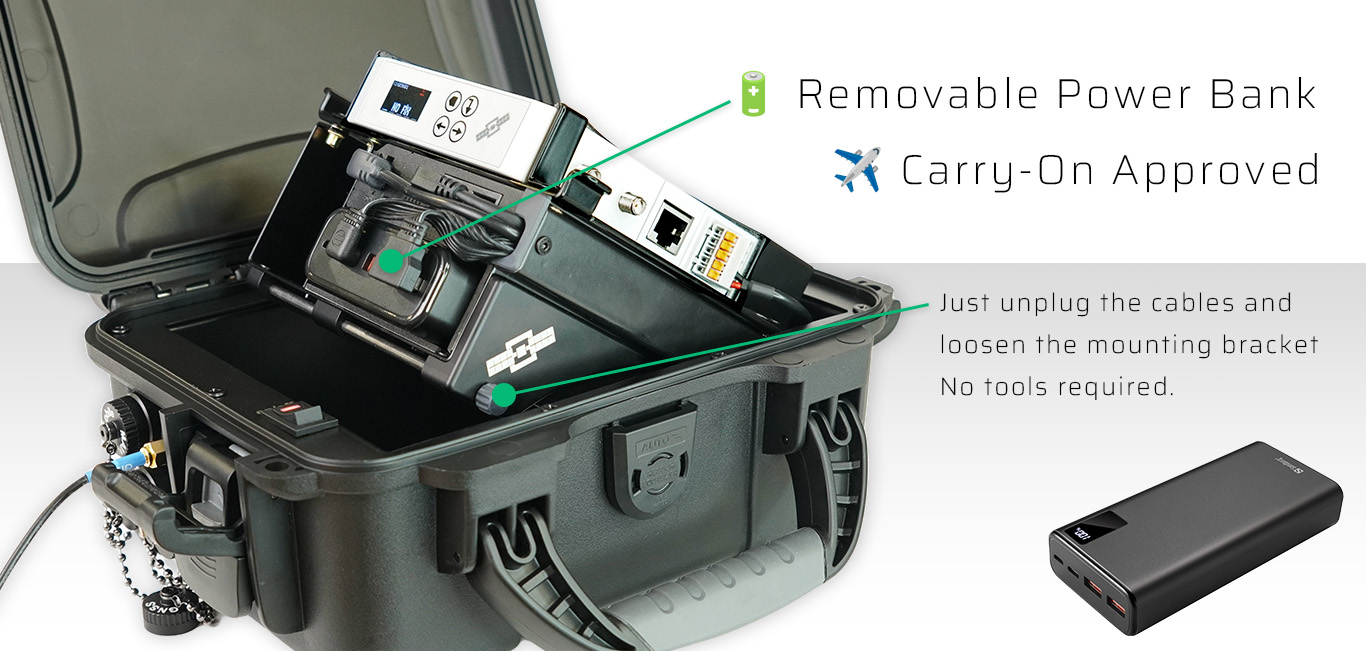

Removable 20,000 mAh Power Bank
Provides up to 16 hours of autonomous operation, easily replaceable without tools. Certified for air travel and safe for carry-on baggage.
Offline GNSS Monitoring
Optional micro-PC provides standalone data logging to a MicroSD card and real-time interference monitoring via a local Wi-Fi hotspot, accessible from any laptop or smartphone.

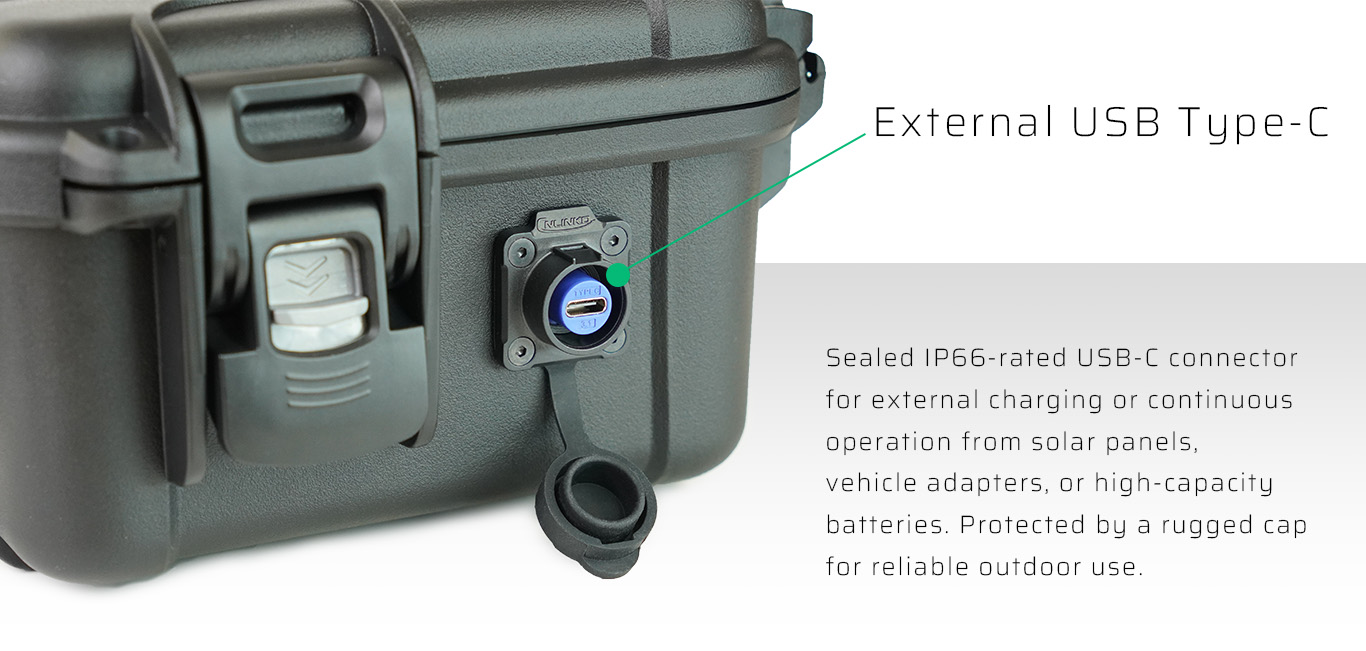

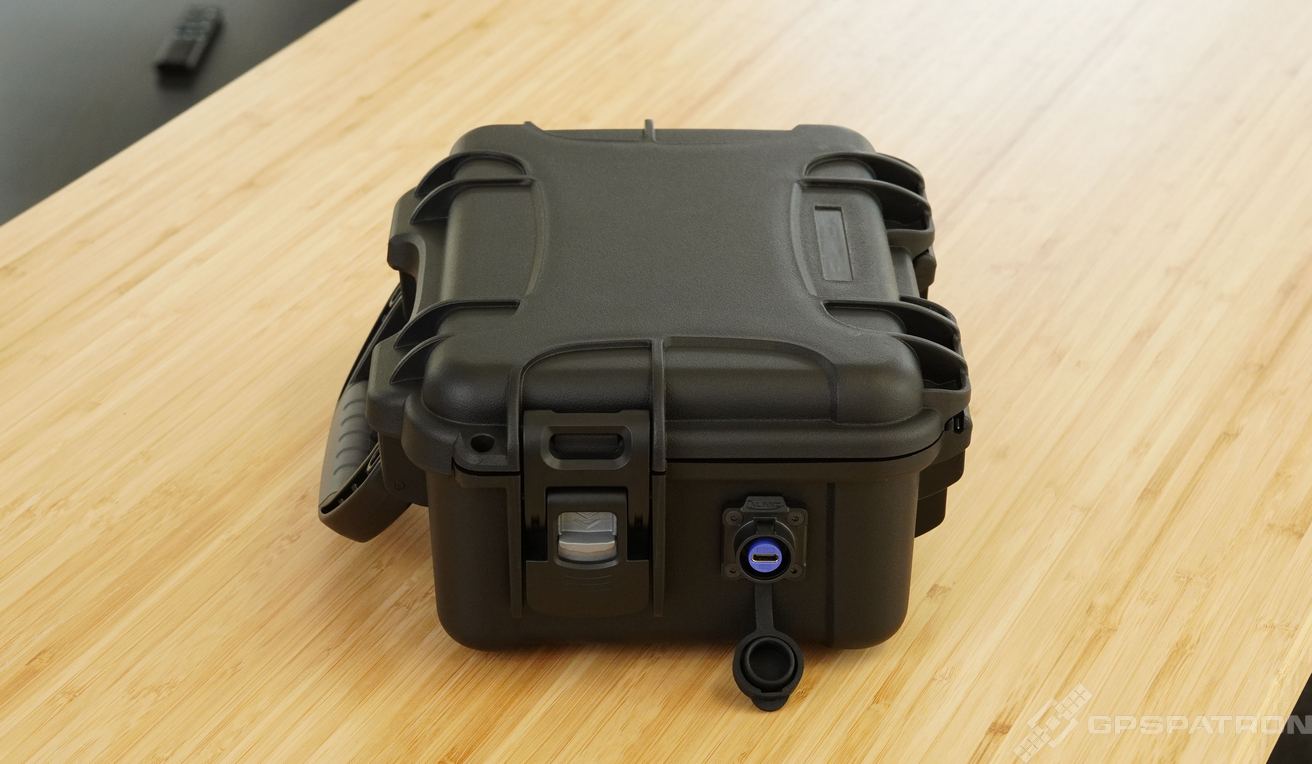

Field-Ready Power Input
External IP67-rated USB Type-C port supports charging from portable power stations, high-capacity power banks, and solar panels, ensuring maximum flexibility for field deployments.

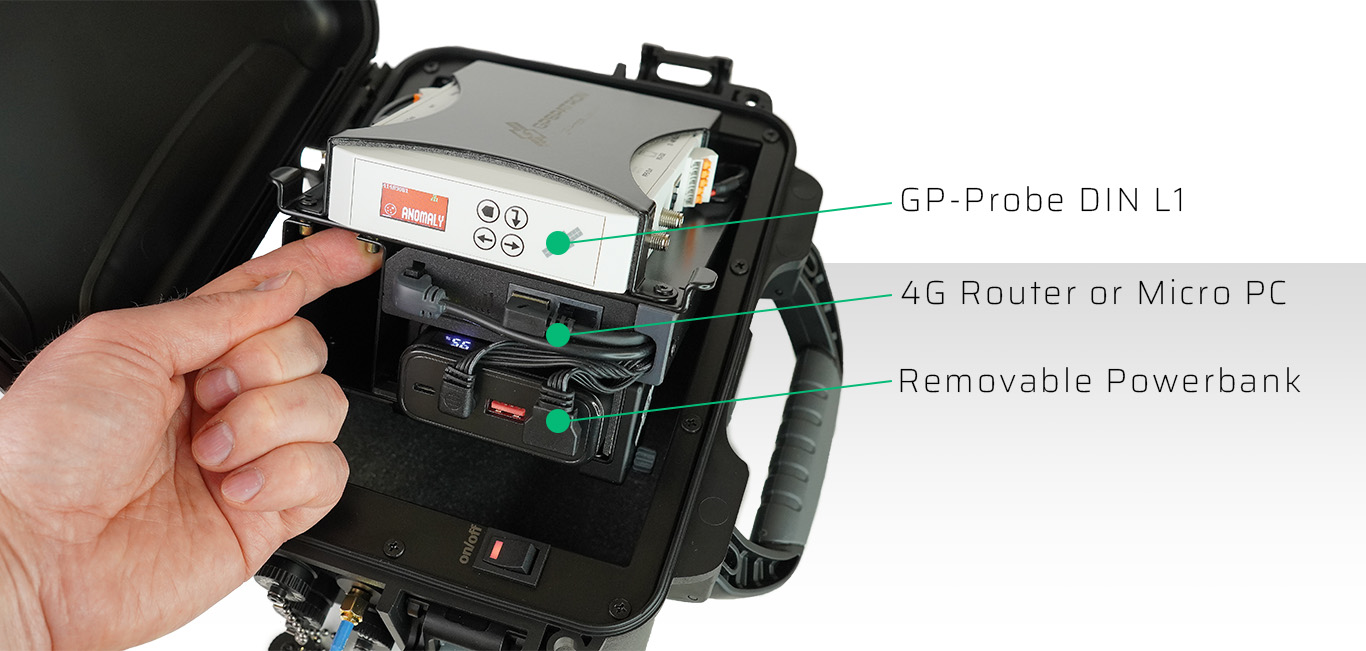

Easy Maintenance and Deployment
Tool-free access to internal components, easy power bank replacement, and simple antenna connections enable lightweight field servicing and rapid deployment.
Intro Video — GP-Probe DIN L1 in Rugged Case
See how the GP-Probe DIN L1 is seamlessly integrated into our durable, weather-resistant protective enclosure.
Learn more on our YouTube Channel
Applications
🛩️ Onboard Aircraft GNSS Spoofing Detection
Install the GP-Probe Case DIN L1 onboard aircraft to continuously detect GNSS spoofing attacks and monitor the navigation field in real time. The system records all interference events and navigation anomalies to the internal MicroSD card for post-flight analysis. Pilots or onboard systems can connect to the device’s local Wi-Fi hotspot for live monitoring during the flight, without requiring an internet connection.
Recommended version: GP-Probe Case DIN L1 – PC Kit (offline data logging and monitoring via Wi-Fi)
🎯 Temporary GNSS Monitoring During Events
Deploy multiple GP-Probe Case DIN L1 units around the perimeter of drone shows, airshows, concerts, or other public events to monitor GNSS interference in real time. Data is continuously streamed to GP-Cloud, allowing centralized remote monitoring from the event control center.
The external IP67-rated USB Type-C input allows connecting portable power stations or solar panels, ensuring uninterrupted operation throughout long events without the need for manual recharging.
Recommended version: GP-Probe Case DIN L1 – 4G Kit (real-time remote monitoring via GP-Cloud)
🚢 GNSS Monitoring on Maritime Vessels
Mount the GP-Probe Case DIN L1 on ships or research vessels to detect GNSS jamming and spoofing activities during sea operations. The system provides real-time GNSS signal monitoring and stores data locally for further analysis. Crew members can access real-time data via a direct Wi-Fi connection even when operating far from terrestrial networks.
Recommended version: GP-Probe Case DIN L1 – PC Kit (offline operation)
🚨 Quick-Response Deployment in High-Risk Areas
Rapidly set up GNSS monitoring units in border zones, conflict regions, or GNSS blackspots to monitor and react to interference events.
Recommended version: GP-Probe Case DIN L1 – 4G Kit (for immediate online monitoring)
🛤️ Monitoring Along Critical Infrastructure
Deploy the system along transport corridors such as highways, railways, airports, and seaports. Detect and localize jamming activities or signal degradation affecting critical infrastructure.
Recommended versions:
- GP-Probe Case DIN L1 – 4G Kit (real-time monitoring)
- GP-Probe Case DIN L1 – PC Kit (offline logging for remote areas)
🌄 Interference Logging in Remote Areas with No Internet
Deploy the GP-Probe Case DIN L1 in rural, mountainous, or infrastructure-poor locations where internet connectivity is unavailable. The device autonomously logs GNSS signal quality and interference data for months onto the internal storage.
Thanks to the external IP67-rated USB Type-C power input, users can connect high-capacity power banks or solar panels, enabling extended autonomous operation without human intervention.
Recommended version: GP-Probe Case DIN L1 – PC Kit (standalone mode with local data access)
Need something different?
We are ready to design a tailored configuration to meet your specific project requirements. Contact us and let’s build the perfect setup for you.
Kindly send us your enquiry via the form below and we will contact you shortly
Specification
Supported GP-Probe Model
Connectors
4G Kit: |
|
PC Kit: |
|
Micro-PC
Processor: | 2GHz quad-core RISC-V |
Memory: | 4GB LPDDR4 |
Storage: | 16GB eMMC |
GNSS Data Storage: | 128 GB MicroSD |
Wi-Fi: | 802.11b/g/n (Wi-Fi 4), Access Point (AP), Station (STA). Wi-Fi preconfigured in Access Point mode for direct connection to the GP-Probe web interface and real-time data monitoring |
Operational System: | Debian Linux (64-bit) Open-source architecture; user-customizable software |
Application: |
Python-based application that connects to the GP-Probe via WebSocket, captures real-time data, and logs it directly to the internal SD card for later analysis. |
4G/Wi-Fi Router
Router Model: | Teltonika RUT241230000, Global version, eSIM |
Mobile Module: | 4G LTE Cat 4 up to 150 DL/50 UL Mbps 3G up to 21 DL/5.76 UL Mbps 2G up to 236.8 DL/236.8 UL kbps |
Storage: | 16GB eMMC |
eSIM: | Consumer type eSIM, profile download and removal operations, up to 7 eSIM profiles; does not include data plans |
SIM Switch: | 1 x 2FF SIM and 1 x eSIM, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail |
Wireless Mode: | 802.11b/g/n (Wi-Fi 4), Access Point (AP), Station (STA) |
Wi-Fi Security: |
WPA2-Enterprise: PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w Protected Management Frames (PMF) |
Firewall: | Port forward, traffic rules, custom rules, TTL target customization |
Power
Powerbank Model: | Sandberg PD 20W 20000 Aircraft carry-on approved |
Powerbank Capacity: | 20000 mAh / 74 Wh (Sandberg PD 20W 20000) |
Charging: | External IP-67 USB Type-C 90 minutes for a full charge |
Operating Time: | Up to 16 hours |
Mechanical
Enclosure: | Ruggedized, IP66-rated for dust and water resistance |
Size: | 260 × 200 × 115 mm |
Weight: | ~2.3 kg |
Environmental
Operational Temperature: | 0°C to +35°C (Temperature limits are defined by the power bank) |
Storage Temperature: | 0°C to +45°C (Temperature limits are defined by the power bank) |
Humidity: | 0% – 95% RH non-condensing @ 40°C |
Regulatory Compliance
Complies with the requirements: CE | FCC | ROHS | RED
Warranty & Support
Warranty: | 1 year standard warranty. Extended warranty options available upon request. |
Support: | 1 year of complimentary technical support. |
Package Content
- 1× Fully assembled case with GP-Probe DIN L1, power bank or micro-PC.
- 1× Magnetic GNSS antenna with 3-meter cable.
- 1× Wi-Fi antenna.
- 2× Cellular antennas (for 4G Kit only)
- Online quick start guide
Configurations
GP-Probe Case DIN L1 – PC Kit
Designed for:
Standalone GNSS interference detection and offline data logging without any internet connection.
Perfect for remote areas, border monitoring, aircraft, maritime operations, and forensic data collection.
Includes:
- GP-Probe DIN L1 – PPS BL RL SCR
- Built-in micro-PC (BeagleV-Ahead, Debian Linux)
- 128 GB MicroSD card for GNSS data storage
- 20,000 mAh Power Bank (air travel approved)
- One Wi-Fi antenna
- Magnetic GNSS antenna (3-meter cable)
GP-Probe Case DIN L1 – 4G Kit
Designed for:
Real-time GNSS interference monitoring with remote data streaming to GP-Cloud.
Ideal for drone shows, infrastructure monitoring, quick-response deployments, and real-time event control.
Includes:
- GP-Probe DIN L1 – PPS BL RL SCR
- Teltonika RUT241 4G/Wi-Fi router
- 20,000 mAh Power Bank (air travel approved)
- Two 4G antennas
- One Wi-Fi antenna
- Magnetic GNSS antenna (3-meter cable)
