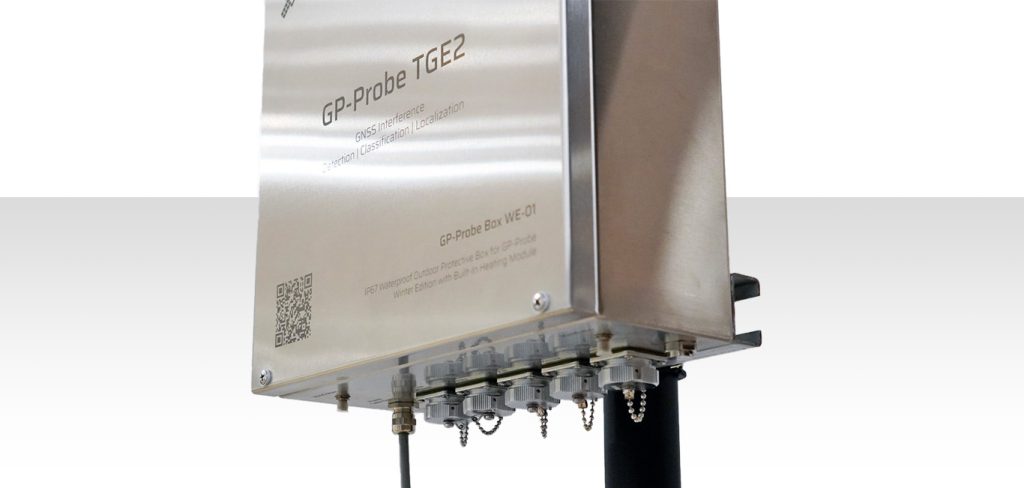

GP-Probe BOX for TGE2

IP66 Rated Protective Box for Outdoor Use of GP-Probe TGE2 with Embedded Antenna System. Designed for Wall or Pole Mounting

Available as a separate accessory for the GP-Probe TGE2

Key Features Specification Ordering Information Resources

Key Features

The enclosure is engineered to house and protect the GP-Probe TGE2 GNSS interference detector in demanding environments. It ensures reliable operation in extreme conditions, withstanding temperatures from -40°C to +50°C. Its user-friendly design allows for easy installation & de-installation of the detector. The comprehensive mounting kit enables secure mounting on various surfaces and walls, ensuring versatile deployment options.

Embedded Antenna System

The GP-Probe Box for TGE2 features a built-in three-channel antenna system, providing advanced detection of sophisticated coherent spoofing attacks through spatial signal processing.

IP66 Rated Protection

All external components, including antennas, connectors, and the enclosure itself, are engineered to meet IP66 standards, providing robust resistance against water and dust ingress.

Premium Stainless Steel Enclosure

The GP-Probe Box is constructed from high-grade stainless steel and equipped with military-grade connectors, providing exceptional durability and reliability.

Wide Operational Temperature Range

Equipped with an advanced automatic heating module, the GP-Probe Box is capable of efficient operation in temperatures from -40°C to +50°C, ensuring reliable performance in extreme weather conditions.

Comprehensive Mounting Kit

The GP-Probe Box comes with a mounting bracket and a complete installation kit, including a pole clamp for secure attachment to round or square poles. This ensures compatibility with various surfaces and facilitates easy installation.

Effortless Installation of the GP-Probe TGE2

The enclosure is available as an optional accessory for the GP-Probe TGE2. Installation and removal of your detector are straightforward and can be accomplished with a single screwdriver in under 5 minutes.

GP-Probe Box & Case Intro Video

Explore the rugged GP-Probe Case, engineered for field use under any weather conditions, and the GP-Probe Box, perfect for mounting on poles or walls.
Learn more on our YouTube Channel

Specification

Mechanical

Protection:	IP66, Waterproof, Crushproof, Dustproof, Corrosion-proof
Size:	300 x 350 x 150 mm, without attached connectors
Weight:	5.0 kg with GP-Probe TGE2 installed

GNSS Antennas

Radiation Pattern:	Omni
Frequency Ranges:	1560 – 1610 MHz
VSWR:	2.5:1 Typ.
LNA Gain:	27 dB
NF:	1.3 dB
Polarization:	RHCP

Connectors

4G Antennas:	Main, Aux. SMA(f)
AC Power:	Cable gland. Nickel-plated Brass. Cable diameter: 4…8mm. IP68
DC Power:	3-pins. Electrical mounting: soldering. Cable diameter: 9…10.5mm. IP67
Relay:	4-pins. Electrical mounting: soldering. Cable diameter: 9…10.5mm. IP67
LAN:	RJ45, IP67
RS 232:	RJ45, IP67
RS 485/422:	RJ45, IP67

Environmental

Operational Temperature:	-40°C to +50°C
Storage Temperature:	-40°C ~ +70°C

4G Antennas

Type:	Multiband Swivel Dipole 617-3900MHz, SMA, IP65
Frequency Ranges:	617MHz ~ 960MHz, 1.4GHz ~ 2.7GHz, 3.2GHz ~ 3.9GHz
VSWR:	3:1(Max)
Gain:	1 / 2.5 / 3 dBi
Radiation pattern:	Omni pattern in H-plane
Polarization:	Linear vertical

Warranty & Support

Warranty:	1 year Extended warranty is available
Support:	1 year of complimentary technical support

Package Content

GP-Probe Box:	1 pc.
3G/4G antenna:	2 pcs.
Connectors Kit:	1 pc. The kit includes connectors for: DC power, relay, RS 232, RS 485/422, LAN
Manuals:	Quick start guide

Ordering Information

GP-Probe model number definition

Number of channes

CH1 – asynchronous spoofing detection
CH2 – synchronous spoofing detection
CH3 – detection of synchronous multiple-TX spoofing.
Uncompromising protection against all types of attacks

3G/4G modem bands

EH – for EMEA/Korea/Thailand regions
AH – for North America
SA – for Australia/New Zealand/South America
JC – for Japan
WO – without a built-in modem

RFSA

Embedded 60 MHz real-time RF signal analyzer for spectrum monitoring, interference classification and localization with TDOA

Software Options

GP-Probe OSP

Onboard signal processing for spoofing detection.
The GP-Probe can work without connecting to the GP-Cloud servers.

GP-Probe TDOA

Option for sending raw IQ data to GP-Cloud for interference localization by TDOA method.

GP-Probe LUA

Develop custom scenarios for external equipment remote control via RS232/Telnet/SNMP with the embedded LUA scripting engine.

Optional Accessories

GP-Probe Case

IP67 rated waterproof protective case for GP-Probe outdoor usage with built-in 36v 17.6Ah Lipo batteries.

GP-Blocker

An optional GNSS threat blocker. High isolation RF switch and an embedded noise generator can suppress the most powerful counterfeit RF signals. The ideal solution for protecting time servers against spoofing.

GP-Divider

GNSS power divider with GNSS antenna preamplifier current simulation. It allows you to use one GNSS antenna for two receivers at once.

GP-A-DOME

Dome antenna.
BeiDou, Galileo, GLONASS, GPS.
Panel Mount, IP67

GP-C-010

10 m RG58 Cable

GP-C-050

50 m LMR195 Equivalent Cable

GP-C-100

50 m LMR195 Equivalent Cable

GP-SPP

A multi-strike maintenance-free surge suppressor

GP-AMP-20

GNSS Amplifier – 20db
