GP-Probe Rack Adapter for DIN L1
Mount GP-Probe DIN L1 into standard 19-inch racks with ease and flexibility
Contact Us for Project Evaluation
Reseller Directory
Choose from our trusted distributors to enjoy personalized service, expert advice, and compliance with regional standards for a seamless buying experience.
Key Features

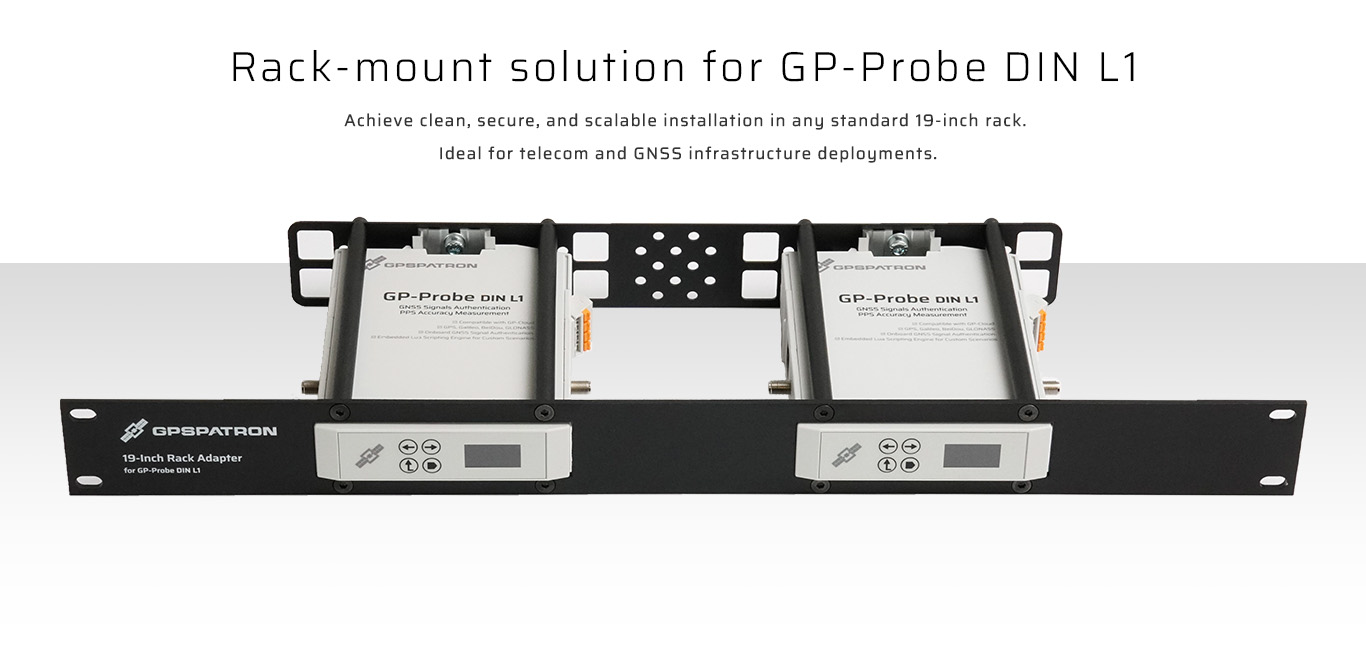

Designed specifically for 19-inch rack installations, the GP-Probe Rack Adapter DIN L1 provides a clean, secure, and professional way to integrate one or two GP-Probe DIN L1 devices into standard rack-mounted setups. Ideal for telecom and infrastructure environments, it offers effortless installation, reliable fixation, and easy access for maintenance.
Flexible Configuration

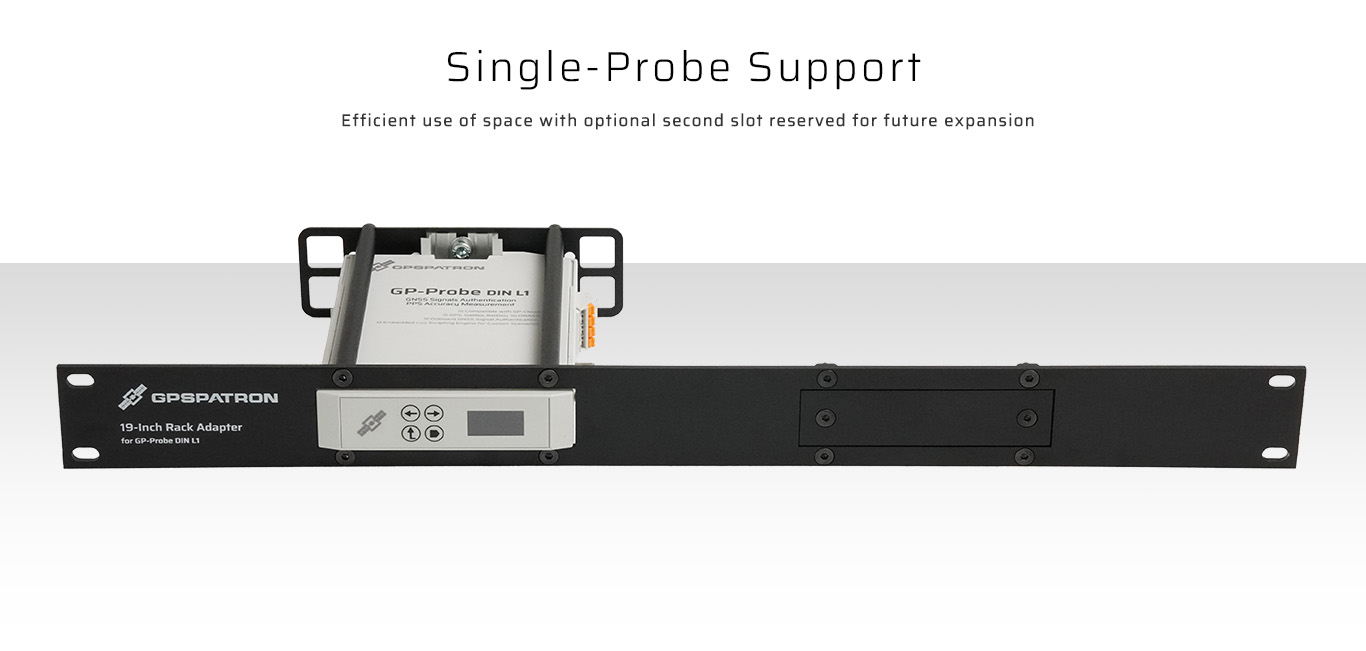

Mount either one or two GP-Probe DIN L1 units — ideal for scalable deployments or dual-probe redundancy setups.

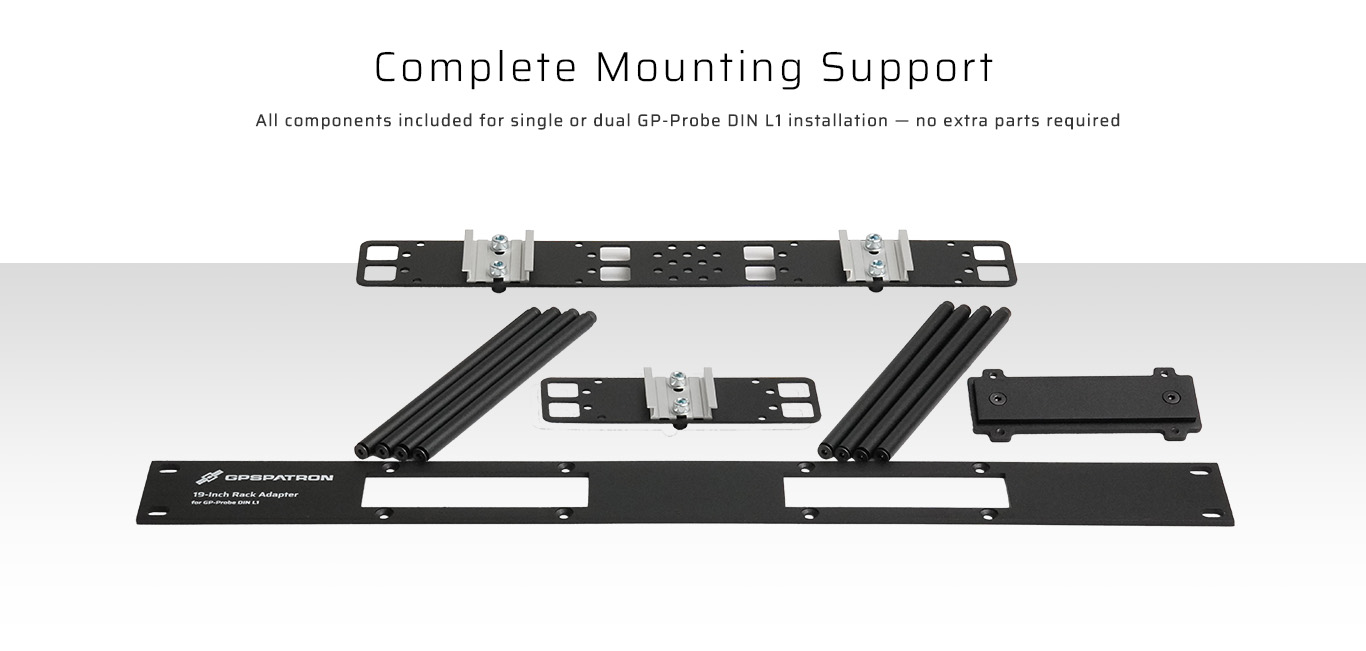

Complete Mounting Kit
Includes all necessary components: mounting hardware, rods, screws, blank plate, and supports — no need to source extra parts.
Secure and Professional Look
Firmly holds your GP-Probes in place while maintaining a clean and organized rack appearance.
19-Inch Rack Compatibility
1U height, fully compliant with standard 19-inch racks used in telecom and infrastructure deployments.
Industrial-Grade Build
Easy-to-Install
Straightforward installation with standard tools, guided by precision-fit components.
Mounting GP-Probe DIN L1 with 19-Inch Rack Adapter
Take a closer look at how the Adapter enables clean and compact integration of one or two probes into a standard 19-inch rack.
Ready for both lab and field use — no tools beyond the basics required. Learn more on our YouTube Channel
Specification
Form Factor
1U, 19-inch rackmount
Supported Devices
1 or 2 × GP-Probe DIN L1
Mechanical
| Material: | Powder-coated steel, anodized aluminum |
| Dimensions: | 482.6 × 44 × 144.6 mm (19″ × 1.73″ × 5.69″) — with probes installed |
| Front Panel Thickness: | 3 mm (0.118″) |
| Weight: | 0.9 kg |
Environmental
| Operational Temperature: | -40°C to +70°C |
| Storage Temperature: | -40°C ~ +90°C |
| Humidity: | 0% – 95% RH non-condensing @ 40°C |
Regulatory Compliance
Complies with the requirements: CE | RoHS| REACH
Warranty & Support
| Warranty: | 1 year standard warranty. Extended warranty options available upon request. |
| Support: | Documentation and assembly instructions available online. |
Package Content
- 1× Front panel (19″, 1U height)
- 1× Rear base plate for dual probe assembly (with multipurpose mounting holes)
- 1× Rear base plate for a single probe assembly (with multipurpose mounting holes)
- 8× Mounting rods (4 per probe slot)
- 1× Blanking plate (for single-probe configuration)
- 4× Screws for 19-inch rack mounting (M6 or UNC 10-32, standard size)
