Key Features
With built-in 36v 26.1Ah Lipo batteries, you can be sure that your GP-Probe TGE2 will stay powered and operational for up to 5 days no matter where you take it, in all weather conditions.
With built-in 36v 26.1Ah Lipo batteries, you can be sure that your GP-Probe TGE2 will stay powered and operational for up to 5 days no matter where you take it, in all weather conditions.
The built-in high-capacity LiPo battery pack combined with the discharge controller enables the GP-Probe to operate in all temperature conditions for at least five days on a single charge.

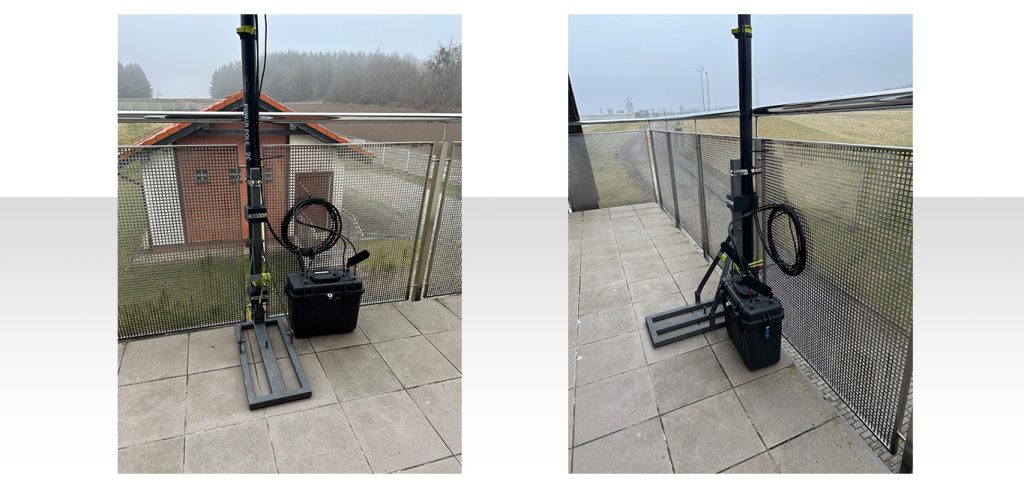

All external components, including antennas, connectors, and the case itself, are designed and rated for IP67 protection, ensuring resistance against water and dust.
GP-Probe is mounted on a shock- and vibration-absorbing damper. The entire case is filled with shockproof foam.
Custom LiPo batteries and a heating system enable the GP-Probe Case to operate efficiently at temperatures ranging from -40 to +40 degrees Celsius.
The GP-Probe Case is supplied with a complete delivery set (except for GP-Probe TGE2 of course:-), so there’s no need to purchase additional items. You can start using the device as soon as you receive it.
The GP-Probe Case is available as a separate option. You can easily install and remove the GP-Probe using just one screwdriver in 5 minutes or less.
Protection: | IP67, Waterproof, Crushproof, Dustproof, Corrosion-proof |
Size: | 430 x 244 x 341 mm, without connected antennas |
Weight: | 9.0 kg with GP-Probe TGE2 installed 7.5 kg without GP-Probe TGE2 |
3 units 10S3P LiPo, 36V, 10.5Ah, 18650
Enables 5 days of GP-Probe TGE2 operation
Input Voltage: | 100-240V 50/60HZ |
Output Voltage: | 42V |
Output current: | 3A |
Output power: | 150W |
Size: | 135*55*45mm |
Type: | Helical |
Frequency Ranges: | GPS L1/L2
GLONASS L1/L2 GALILEO E1/E5b BDS B1/B2/B3 |
VSWR: | 2.5:1 Typ. |
LNA: | 32 dB |
NF: | <2 dB |
Polarization: | Right-hand circular |
Type: | Multiband Swivel Dipole 617-3900MHz, SMA, IP65 |
Frequency Ranges: |
617MHz ~ 960MHz, 1.4GHz ~ 2.7GHz, 3.2GHz ~ 3.9GHz
|
VSWR: | 3:1(Max) |
Gain: | 1 / 2.5 / 3 dBi |
Radiation pattern: | Omni pattern in H-plane |
Polarization: | Linear vertical |
Connector: | SMA(F) |
Network Interface: | 10/100BASE-T RJ45, 15KV ESD protection |
Operational Temperature: | -40°C to +40°C Avoid direct sunlight |
Storage Temperature: | -10°C ~ +60°C |
Warranty: | 1 year Extended warranty is available |
Support: | 1 year of complimentary technical support |
GP-Probe Case: | 1 pc. |
GNSS antenna: | 3 pcs. |
3G/4G antenna: | 2 pcs. |
Manuals: | Quick start guide |
Power adapter: | 1 pc. 1.7 m IEC power lead |
CH1 – asynchronous spoofing detection
CH2 – synchronous spoofing detection
CH3 – detection of synchronous multiple-TX spoofing.
Uncompromising protection against all types of attacks
EH – for EMEA/Korea/Thailand regions
AH – for North America
SA – for Australia/New Zealand/South America
JC – for Japan
WO – without a built-in modem
Embedded 60 MHz real-time RF signal analyzer for spectrum monitoring, interference classification and localization with TDOA
Onboard signal processing for spoofing detection.
The GP-Probe can work without connecting to the GP-Cloud servers.
Option for sending raw IQ data to GP-Cloud for interference localization by TDOA method.
Develop custom scenarios for external equipment remote control via RS232/Telnet/SNMP with the embedded LUA scripting engine.
IP67 rated waterproof protective case for GP-Probe outdoor usage with built-in 36v 17.6Ah Lipo batteries.
An optional GNSS threat blocker. High isolation RF switch and an embedded noise generator can suppress the most powerful counterfeit RF signals. The ideal solution for protecting time servers against spoofing.
GNSS power divider with GNSS antenna preamplifier current simulation. It allows you to use one GNSS antenna for two receivers at once.
Dome antenna.
BeiDou, Galileo, GLONASS, GPS.
Panel Mount, IP67
10 m RG58 Cable
50 m LMR195 Equivalent Cable
50 m LMR195 Equivalent Cable
A multi-strike maintenance-free surge suppressor
GNSS Amplifier – 20db
